Audio Winner T1216.12H 16 Channel DSP Car Audio Processor with 12ch Hi Power Class D Car Amplifier

5 0 Reviews
  1. Powerful Connectivity: The T1216.12H Car DSP Amplifier offers 12-channel input and 16-channel output, supporting Hi level, Optical, Low, Bluetooth, and USB audio sources, making it highly adaptable to various audio devices.
  2. Precise Sound Tuning: With 12*31 + 4*11 bands EQ, Crossover, and Delay functions, along with PC software and remote control, it enables personalized sound customization.
  3. High - Power Performance: It delivers an RMS power of 110W per channel at 4Ω for 12 channels, with a frequency response of 20Hz - 20kHz, ensuring high-fidelity sound reproduction.
  4. Convenient Bluetooth: Built - in Bluetooth 5.0 provides a stable connection for seamless wireless music playback.
  5. Accessories and Warranty: The package includes 1 DSP Amplifier, 1 HI IN Wiring Harness, and 1 USB Cable. The external wiring controller and microphone are sold separately. Warranty is available in South Korea with the original receipt.
Price: $ 780
Discount Price: $ 650

  • T1216.12H

  • AUDIOWINNER

SKU:
Availability:
Quantity:

硬件配置接线&尺寸图(2)a9c628cb-bb36-478e-8680-a705a81fb10e安装步骤及位置公司介绍company profile生产流程公司介绍定制服务采购流程

T1216.12D 12-Channel DSP Amplifier – The SPL Godzilla

✅ 12 High-Level + 8 RCA Inputs：

· 3-22V input range for Rolls-Royce/Bentley MOST systems.

✅ CLASS D Annihilation Modes：

· 150W×12@4Ω / 180W×12@2Ω (Standard)

· Bridged 300W×6@4Ω：Quad subwoofer apocalypse mode!

✅ Dual-Core 32-bit DSP (CIRRUS+AKM)：24Bit/192KHz studio-mastering with 95dB SNR.

✅ 400-Band EQ & 15ms Alignment：12×31 full-range + 4×11 bass zones for SPL dominance.

✅ APTX HD & USB Audio Direct：Lossless 24-bit/96kHz streaming via any source.

✅ Military-Grade 75A Current：MIL-STD-810H certified for arctic/desert operations.

✅ LED Command Hub & 10 Presets：Real-time tuning sync across iOS/Android/PC.

Engineered For：World-record SPL builds, armored vehicle bass systems, luxury yacht audio.

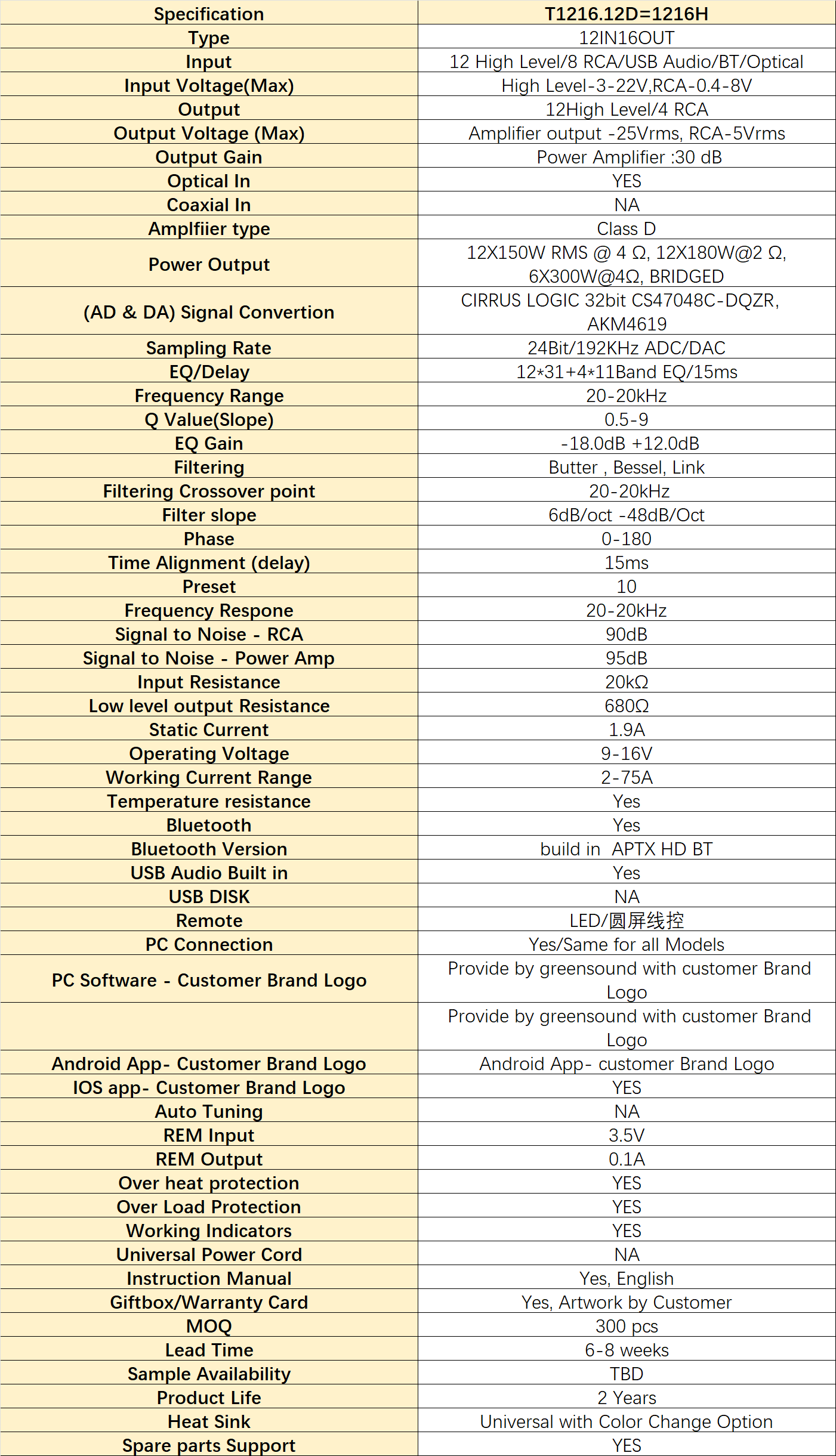

SpecificationT1216.12H
Input12   High Level/8 RCA/USB Audio/BT/Optical
Input Voltage(Max)High   Level-3-22V,RCA-0.4-8V
Output12High   Level/4 RCA
Output Voltage (Max)Amplifier   output -25Vrms, RCA-5Vrms
Output GainPower Amplifier :30 dB
Optical InYES
Coaxial InNA
Amplfiier typeClass   D
Power Output12X150W   RMS @ 4 Ω, 12X180W@2 Ω, 6X300W@4Ω, BRIDGED
(AD & DA) Signal ConvertionCIRRUS   LOGIC 32bit CS47048C-DQZR，
    AKM4619
Sampling Rate24Bit/192KHz   ADC/DAC
EQ/Delay12*31+4*11Band   EQ/15ms
Frequency Range20-20kHz
Q Value(Slope)0.5-9
EQ Gain-18.0dB +12.0dB
FilteringButter   , Bessel, Link
Filtering Crossover point20-20kHz
Filter slope6dB/oct   -48dB/Oct
Phase0-180
Time Alignment (delay)15ms
Preset10
Frequency Respone20-20kHz
Signal to Noise - RCA90dB
Signal to Noise - Power Amp95dB
Input Resistance20kΩ
Low level output Resistance680Ω
Static Current1.9A
Operating Voltage9-16V
Working Current Range2-75A
Temperature resistanceYes
BluetoothYes
Bluetooth Versionbuild   in  APTX HD BT
USB Audio Built inYes
USB DISKNA
RemoteLED/圆屏线控
PC Connectionyes
PC Softwareyes
Android Appyes
IOS appYES
Auto TuningNA
REM Input3.5V
REM Output0.1A
Over heat protectionYES
Over Load ProtectionYES
Working IndicatorsYES
