E812.8A
AudioWinner
SKU: | |
---|---|
Availability: | |
Quantity: | |

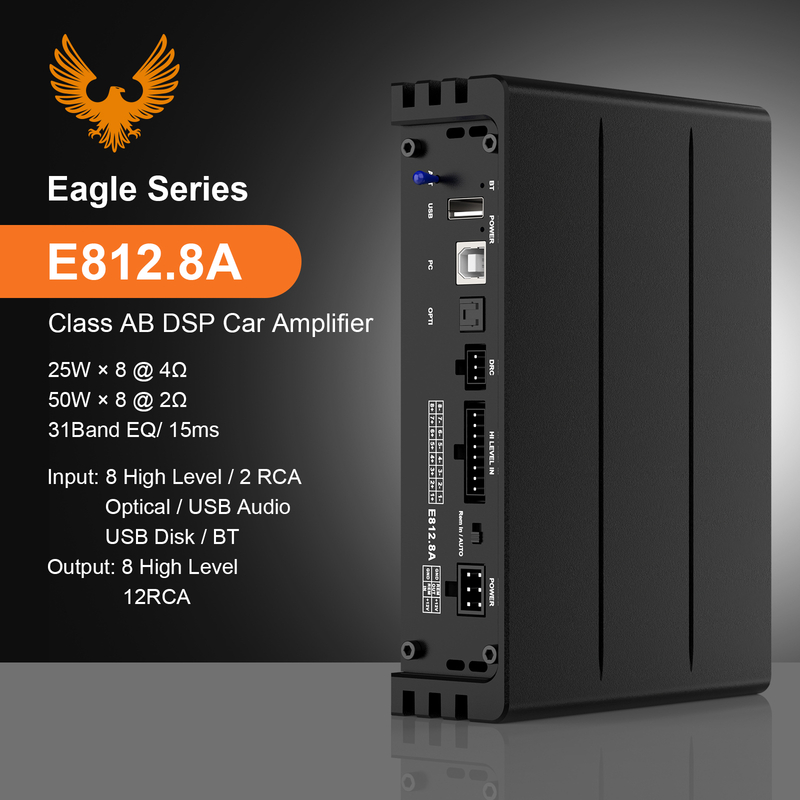

E812.8A 12-Channel DSP Amplifier – Audiophile’s Dream

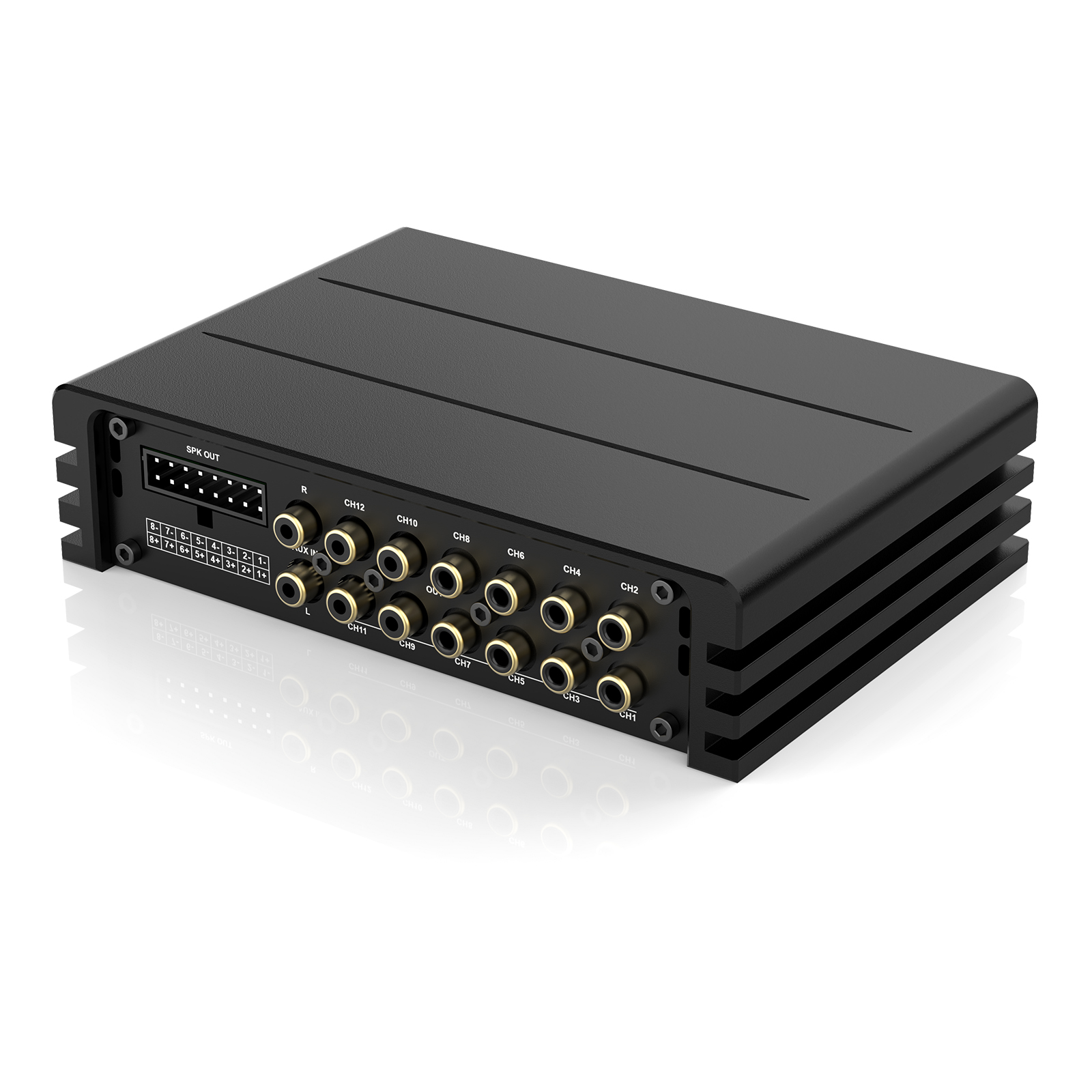

✅ 8 High-Level Inputs + 12 RCA Outputs:Build multi-zone systems for immersive 360° sound.
✅ CLASS AB Dual Power Mode:8×25W@4Ω / 8×50W@2Ω, distortion-free even at max SPL.
✅ CIRRUS LOGIC+AKM4619 DSP Trio:Hi-End chipset with 24Bit/192KHz studio mastering.
✅ 31-Band EQ & 0.5-9 Q Value:Sculpt frequencies like a pro for competition-grade audio.
✅ Bluetooth 5.1 & Dual USB Lossless:Direct play FLAC/APE via USB or wireless streaming.
✅ 10 Presets + Cross-Platform Control:Save/load custom profiles on PC/iOS/Android.
✅ 9-16V Voltage & 0.45A Standby:Zero battery drain for RVs and off-road vehicles.
Engineered For:SPL competitions, luxury car upgrades, and home theater-level audio.
E812.8A 12-Channel DSP Amplifier – Audiophile’s Dream
✅ 8 High-Level Inputs + 12 RCA Outputs:Build multi-zone systems for immersive 360° sound.
✅ CLASS AB Dual Power Mode:8×25W@4Ω / 8×50W@2Ω, distortion-free even at max SPL.
✅ CIRRUS LOGIC+AKM4619 DSP Trio:Hi-End chipset with 24Bit/192KHz studio mastering.
✅ 31-Band EQ & 0.5-9 Q Value:Sculpt frequencies like a pro for competition-grade audio.
✅ Bluetooth 5.1 & Dual USB Lossless:Direct play FLAC/APE via USB or wireless streaming.
✅ 10 Presets + Cross-Platform Control:Save/load custom profiles on PC/iOS/Android.
✅ 9-16V Voltage & 0.45A Standby:Zero battery drain for RVs and off-road vehicles.
Engineered For:SPL competitions, luxury car upgrades, and home theater-level audio.

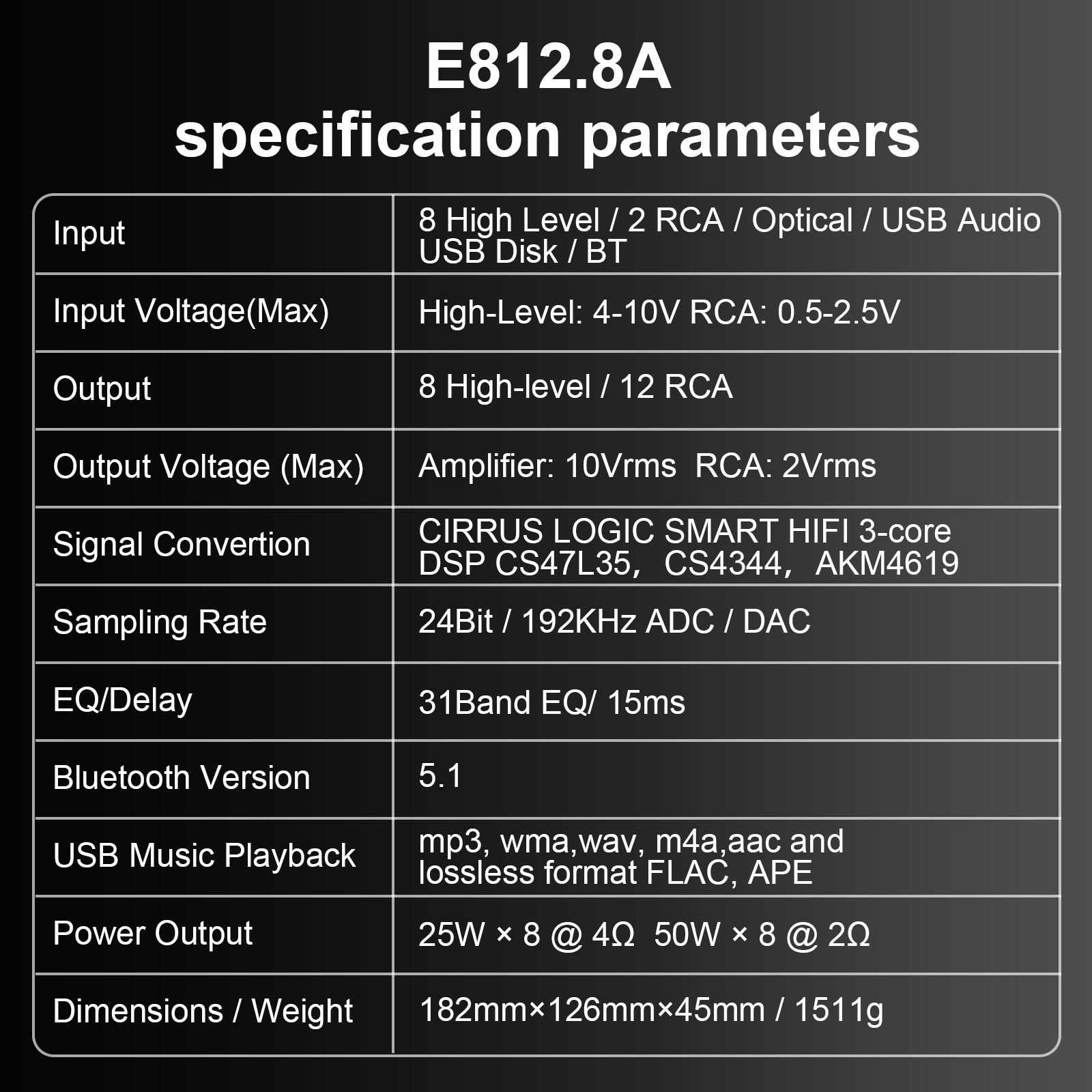

Specification | E812.8A |

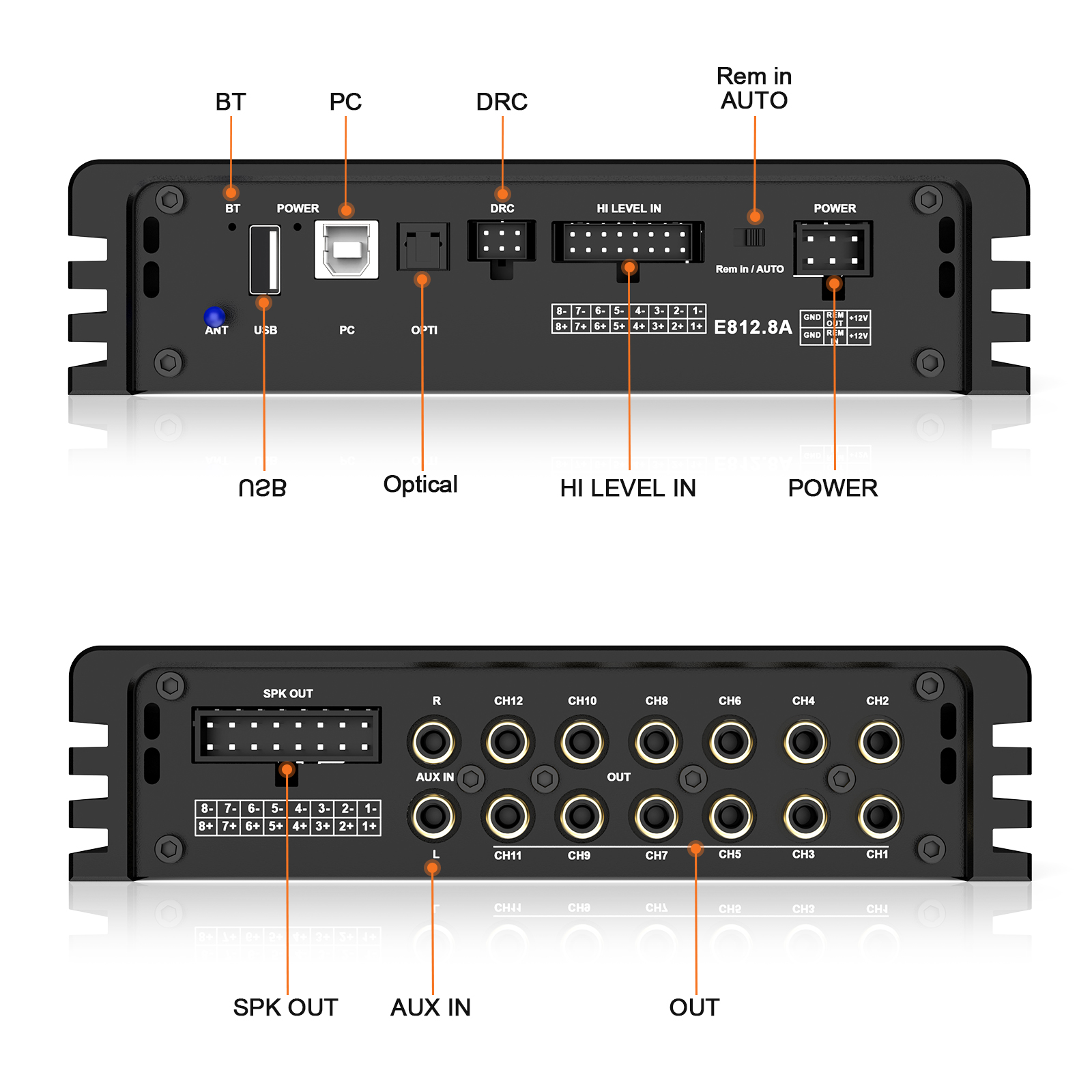

Input | 8High Level/2 RCA/Optical/USB Audio/USB Disk/BT |
Input Voltage(Max) | High Level-4-10V,RCA-0.5-2.5V |
Output | 8 High Level/12RCA |
Output Voltage (Max) | Amplifier output -10Vrms, RCA-2Vrms |
Output Gain | Power Amplifier :26 dB |
Optical In | YES |
Coaxial In | NA |
Amplfiier type | CLASS AB |
Power Output | 8x25W @ 4 Ω , 8x50W@ 2 Ω |
(AD & DA) Signal Convertion | CIRRUS LOGIC SMART HIFI 3-core DSP CS47L35,CS4344,AKM4619 |
Sampling Rate | 24Bit/192KHz ADC/DAC |
EQ/Delay | 31Band EQ/15ms |
Frequency Range | 20-20kHz |
Q Value(Slope) | 0.5-9 |
EQ Gain | -18.0dB +12.0dB |
Filtering | Butter , Bessel, Link |
Filtering Crossover point | 20-20kHz |
Filter slope | 6dB/oct -48dB/Oct |
Phase | 0-180 |
Time Alignment (delay) | 15ms |
Preset | 10 |
Frequency Respone | 20-20kHz |
Signal to Noise - RCA | 85dB |
Signal to Noise - Power Amp | 87dB |
Input Resistance | 20kΩ |
Low level output Resistance | 680Ω |
Static Current | 0.45A |
Operating Voltage | 9-16V |
Working Current Range | 0.5-18A |
Temperature resistance | NA |
Bluetooth | Yes |
Bluetooth Version | 5.1 |
USB Audio Built in | YES |
USB DISK | mp3, wma,wav, m4a, aac and lossless format FLAC, APE |
Remote | TFT |
PC Connection | yes |
PC Software | yes |
Android App | yes |
IOS app | yes |
Auto Tuning | NA |
REM Input | 3.5V |
REM Output | 0.1A |
Over heat protection | NA |
Over Load Protection | NA |
Working Indicators | YES |
Specification | E812.8A |
Input | 8High Level/2 RCA/Optical/USB Audio/USB Disk/BT |
Input Voltage(Max) | High Level-4-10V,RCA-0.5-2.5V |
Output | 8 High Level/12RCA |
Output Voltage (Max) | Amplifier output -10Vrms, RCA-2Vrms |
Output Gain | Power Amplifier :26 dB |
Optical In | YES |
Coaxial In | NA |
Amplfiier type | CLASS AB |
Power Output | 8x25W @ 4 Ω , 8x50W@ 2 Ω |
(AD & DA) Signal Convertion | CIRRUS LOGIC SMART HIFI 3-core DSP CS47L35,CS4344,AKM4619 |
Sampling Rate | 24Bit/192KHz ADC/DAC |
EQ/Delay | 31Band EQ/15ms |
Frequency Range | 20-20kHz |
Q Value(Slope) | 0.5-9 |
EQ Gain | -18.0dB +12.0dB |
Filtering | Butter , Bessel, Link |
Filtering Crossover point | 20-20kHz |
Filter slope | 6dB/oct -48dB/Oct |
Phase | 0-180 |
Time Alignment (delay) | 15ms |
Preset | 10 |
Frequency Respone | 20-20kHz |
Signal to Noise - RCA | 85dB |
Signal to Noise - Power Amp | 87dB |
Input Resistance | 20kΩ |
Low level output Resistance | 680Ω |
Static Current | 0.45A |
Operating Voltage | 9-16V |
Working Current Range | 0.5-18A |
Temperature resistance | NA |
Bluetooth | Yes |
Bluetooth Version | 5.1 |
USB Audio Built in | YES |
USB DISK | mp3, wma,wav, m4a, aac and lossless format FLAC, APE |
Remote | TFT |
PC Connection | yes |
PC Software | yes |
Android App | yes |
IOS app | yes |
Auto Tuning | NA |
REM Input | 3.5V |
REM Output | 0.1A |
Over heat protection | NA |
Over Load Protection | NA |
Working Indicators | YES |
