AudioWinner T68.6D High power 8 Channel DSP car audio processor with 6 channel class d car amplifier

5 0 Reviews
  1. Product Highlights: The T68.6D Car DSP Amplifier with a built-in 6-channel Class D amplifier offers a remarkable in - car audio experience with its powerful features.

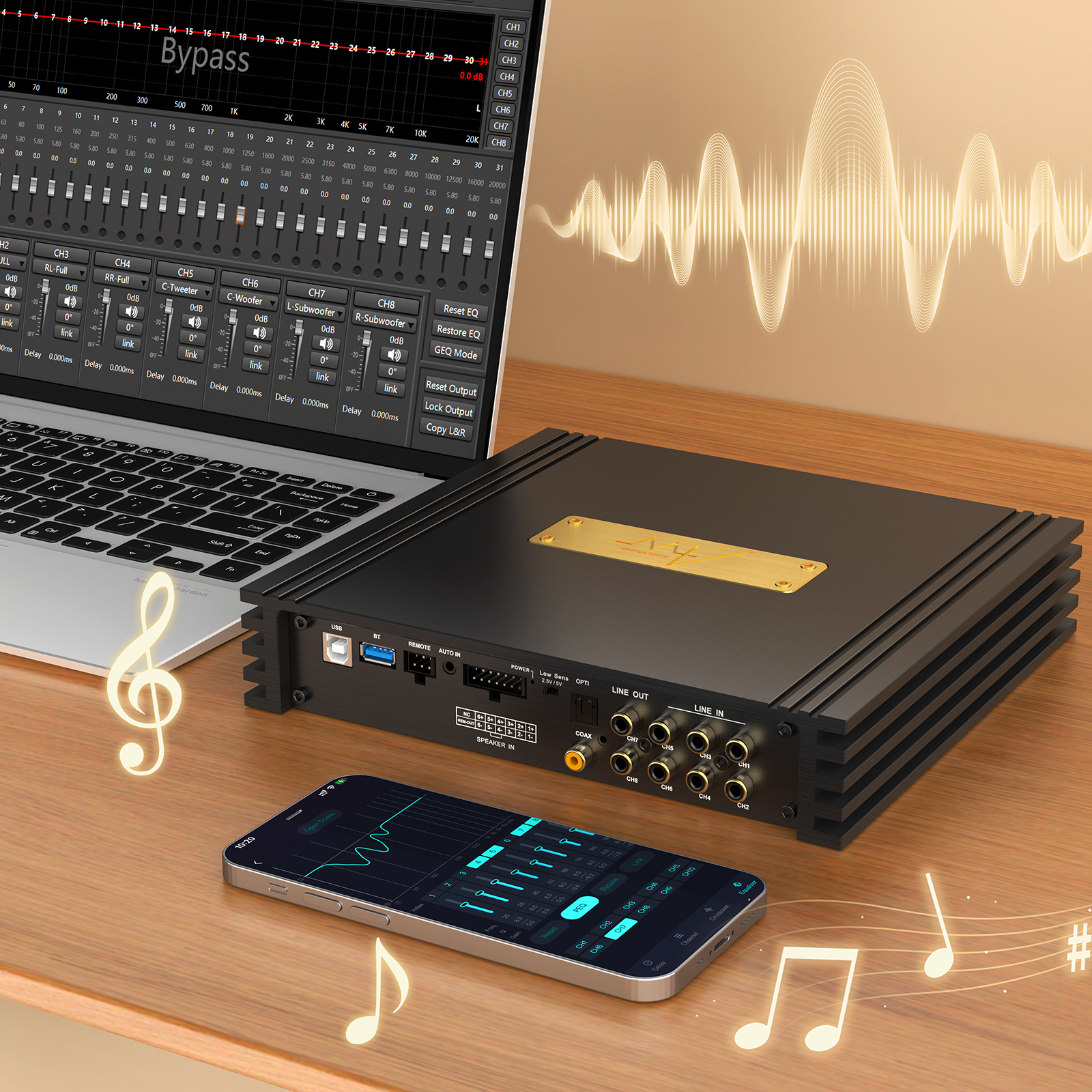

  2. Connection and Control: It supports multiple audio sources like Hi level, Optical, Coax, and AUX, and has external Bluetooth 5.0 for wireless connection. It can be easily controlled via PC software and remote control.
  3. Sound Adjustment: Equipped with a 31 - band EQ, Crossover, and Delay functions, it enables precise sound tuning to create a surround - sound effect.
  4. Power and Performance: With an RMS power of 150W per channel at 4Ω for 6 channels, it provides sufficient power for speakers. Its frequency response ranges from 20Hz to 20kHz, reproducing rich audio details.

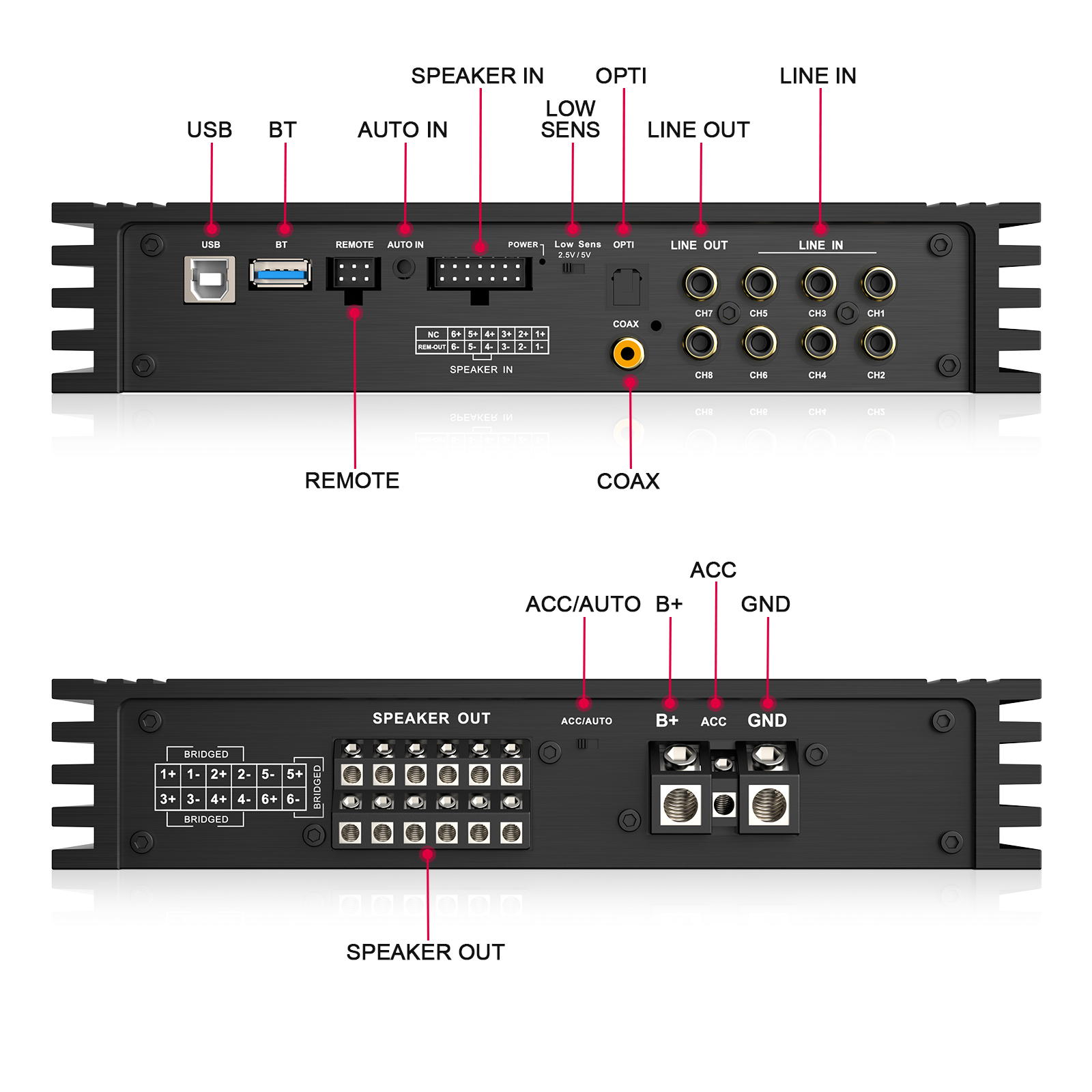

  5. Interface Configuration: It has 6CH high - level speaker input, 6CH low - level RCA input, 6CH high - level speaker output, and 2CH DSP RCA output (RMS 4V). With a high input impedance of 13Ω and adjustable input sensitivity (0.5 - 2.5V/2.5V - 5V), it is compatible with various devices.

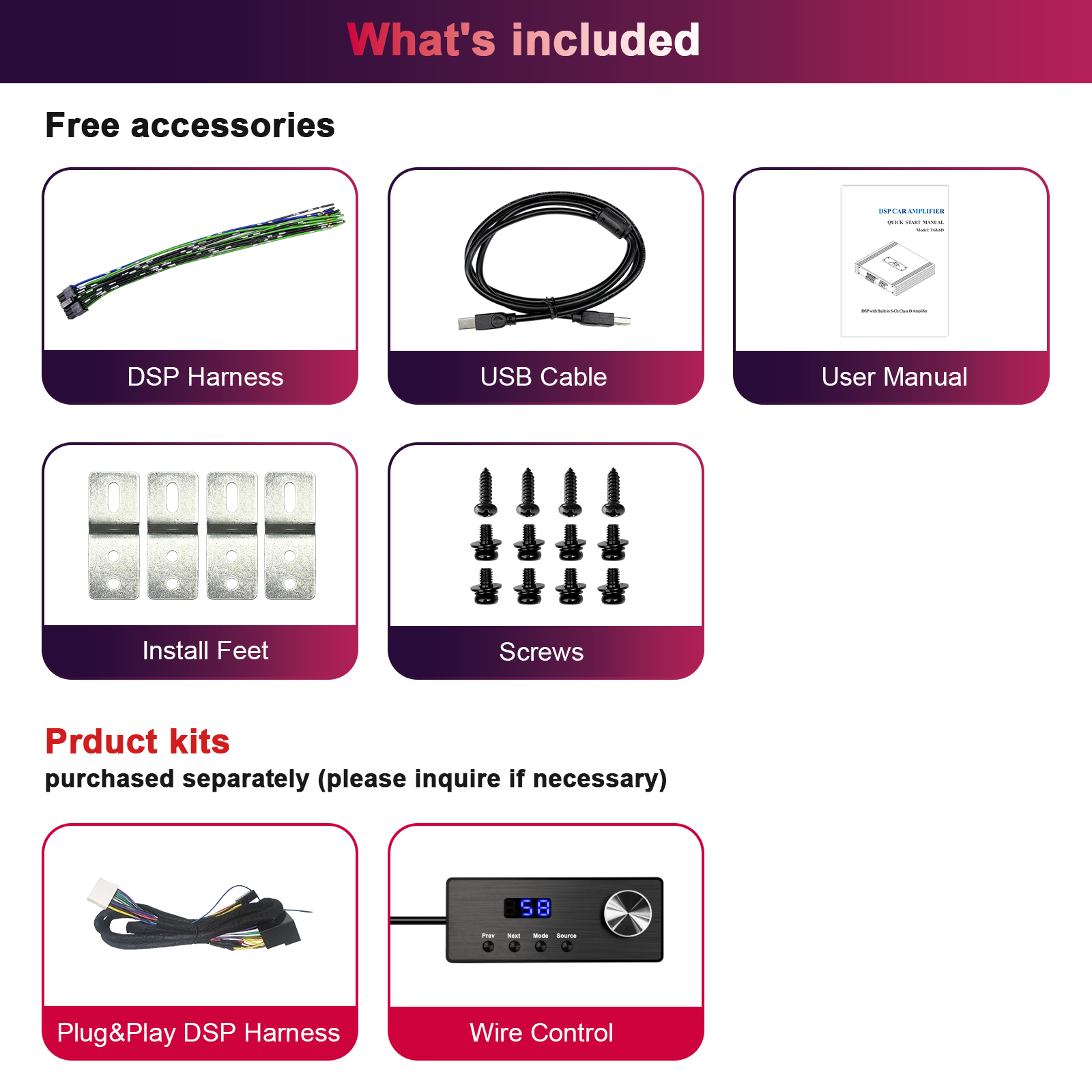

  6. Accessories and Usage Conditions: The package includes 1 amplifier, 1 tail wire, and 1 USB cable. The external wiring controller, external Bluetooth, and automatic tuning microphone are sold separately. It connects to Windows (32/64 - bit) computers via USB 2.0, operates in a temperature range of - 30℃ to 70℃, and has dimensions of 233(L)x218(W)x45(H)mm.
Price: $ 504
Discount Price: $ 420

  • T68.6D

  • AudioWinner

SKU:
Availability:
Quantity:

硬件配置接线&尺寸图(3)自动调音软件图安装步骤及位置公司介绍生产流程公司介绍定制服务采购流程

T68.6D 6-Channel DSP Amplifier – The SPL Dominator

✅ 6 High-Level + Optical/Coaxial/BT 5.0：Seamless integration with active OEM systems.

✅ CLASS D Dual Power Modes：

· 150W×6@4Ω / 180W×6@2Ω (Standard)

· Bridged 300W×3@4Ω：Subwoofer-destroying SPL mode!

✅ Dual-Core 32-bit DSP (CIRRUS+AKM)：24Bit/192KHz decoding with 95dB SNR.

✅ 31-Band EQ & AI Auto-Tuning：15ms smart calibration for competition-grade profiles.

✅ Expandable Bluetooth 5.0 & LED Remote：Pro-level control via iOS/Android/PC.

✅ Military-Grade 75A Current：Built for -40℃~80℃ extreme environments.

✅ Dual Protection Circuits & 1.4A Standby：24/7 operation without battery drain.

Engineered For：3D surround systems, SPL world records, armored vehicle audio.

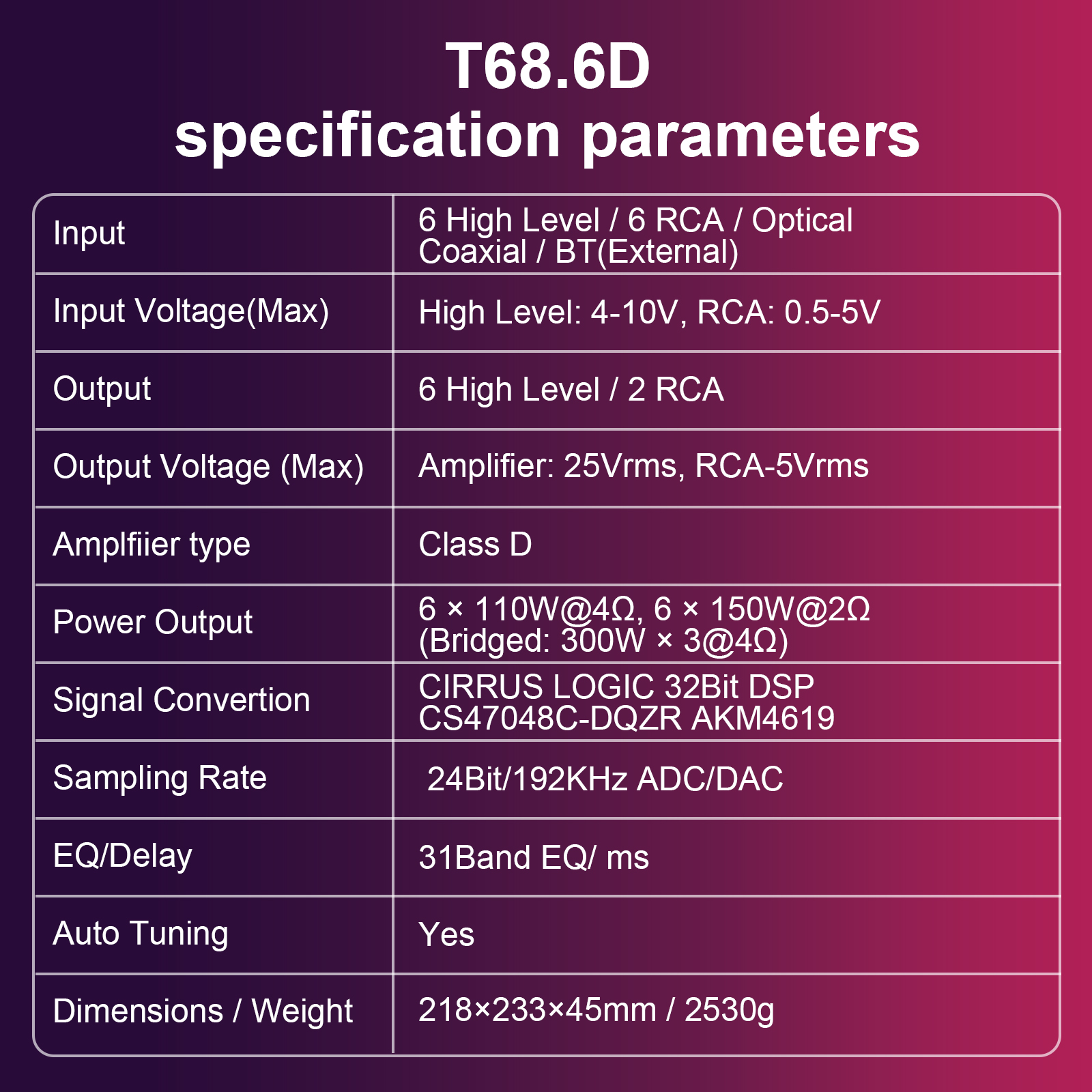

SpecificationT68.6D
Input6   Ch High Level/6 RCA/Optical/Coaxial/BT(External)
Input Voltage(Max)High   Level-4-10Vrms, RCA -0.5-5Vrms
Output6   High Level/2 RCA
Output Voltage (Max)Amplifier   output -25Vrms, RCA-5Vrms
Output GainPower Amplifier : 30dB
Optical InYes
Coaxial InYes
Amplfiier typeClass   D
Power Output6X150W   RMS @ 4 Ω, 6X180W@2 Ω, 3X300W@4Ω,BRIDGED
(AD & DA) Signal ConvertionCIRRUS   LOGIC 32Bit DSP CS47048C-DQZR
    AKM4619
Sampling Rate24Bit/192KHz ADC/DAC
EQ/Delay31Band   EQ/ ms
Frequency Range20Hz-   20Khz
Q Value(Slope)0.5-9
EQ Gain-18.0dB +12.0dB
FilteringButter   , Bessel, Link
Filtering Crossover point20Hz-   20Khz
Filter slope6dB/oct   -48dB/Oct
Phase0-180
Time Alignment (delay)15ms
Preset10
Frequency Respone20-20kHz
Signal to Noise - RCA90dB
Signal to Noise - Power Amp95dB
Input Resistance20kΩ
Low level output Resistance680Ω
Static Current1.4A
Operating Voltage9-16V
Working Current Range1.5-75A
Temperature resistanceYes
Bluetoothnot   build in
Bluetooth Version5.0
USB Audio Built inNA
USB DISKNA
RemoteLED/圆屏线控
PC Connectionyes
PC Softwareyes
Android Appyes
IOS appYes
Auto TuningYes
REM Input3.5V
REM Output0.1A
Over heat protectionYes
Over Load ProtectionYes
Working IndicatorsYes
