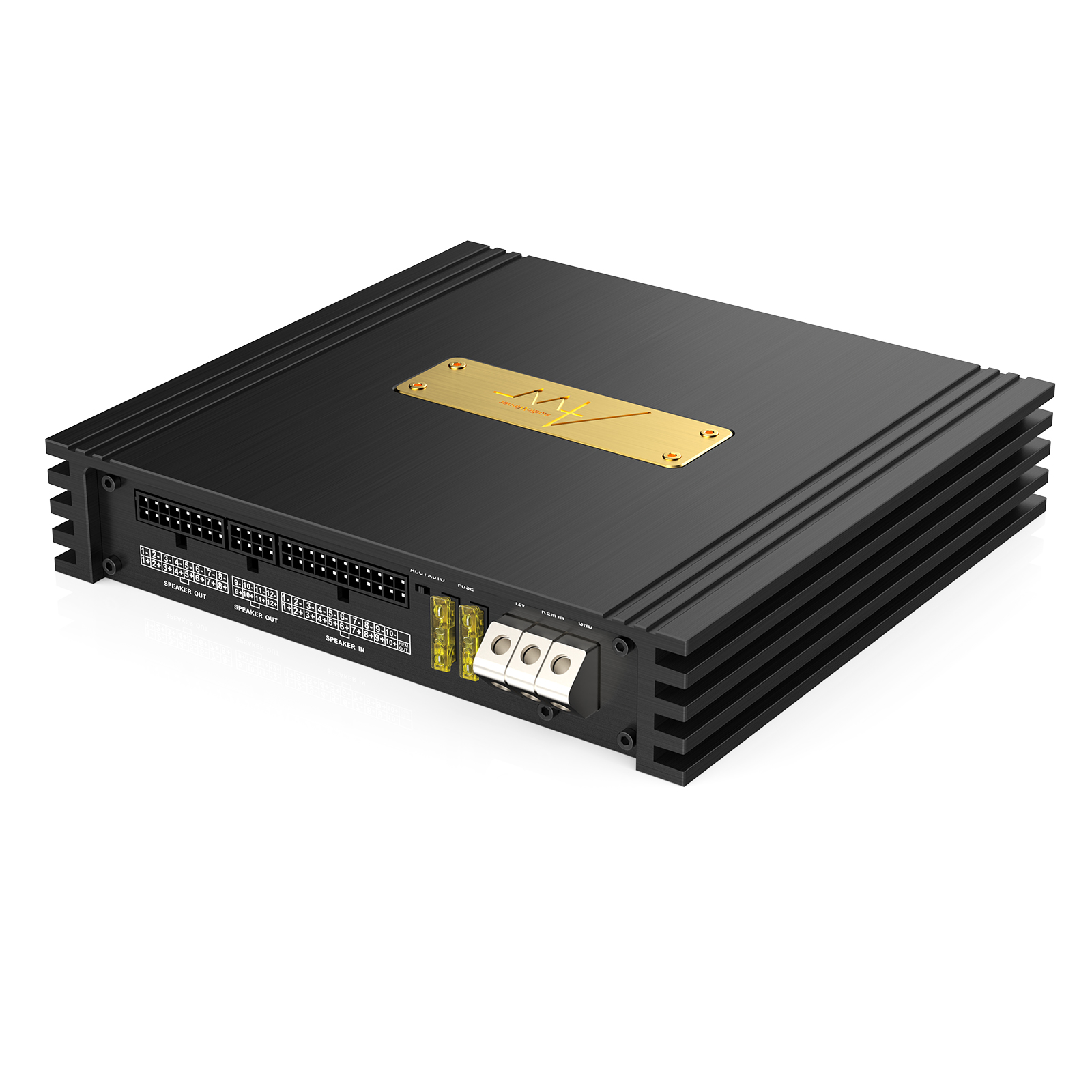

AUDIO WINNER T1012.12M 12 Ch DSP Car Audio Processor with 12 Channel Hi Power Car Amplifier

5 0 Reviews
  1. Powerful Connectivity and Output: The T1012.12M Car DSP Amplifier features 10-channel input and 12-channel output, supporting Optical, Coaxial, Bluetooth, AUX, High level, and Player digital audio sources, making it compatible with various audio devices.

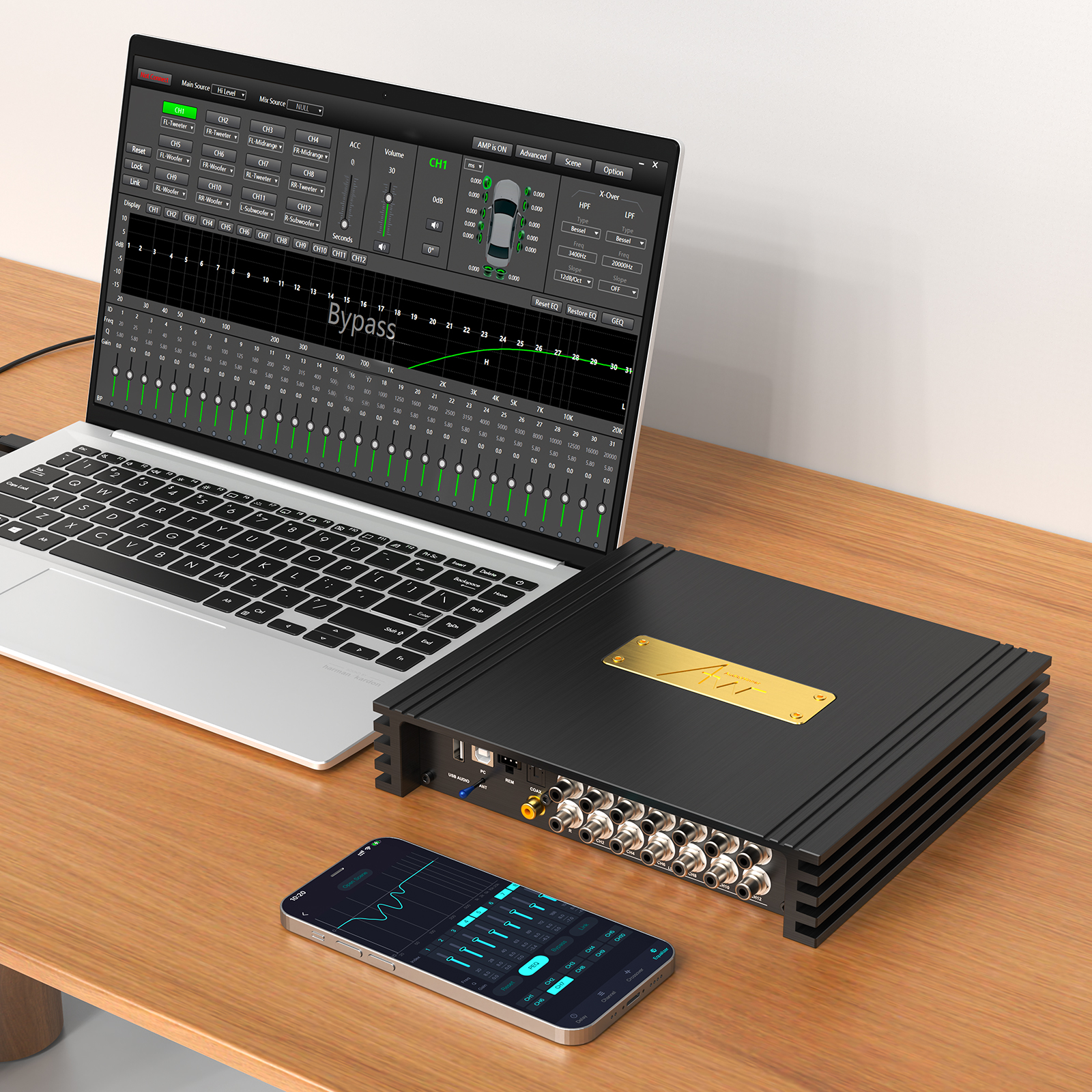

  2. Precise Sound Tuning: Equipped with a 31-band EQ, Crossover, and Delay functions, it enables personalized sound customization via PC software and remote control.
  3. Excellent Power Performance: With an RMS power of 850W@4Ω + 480W@4Ω and a frequency response of 20Hz - 35kHz, it offers high-fidelity sound reproduction.
  4. Convenient Bluetooth Connection: The built-in Bluetooth 5.0 ensures a stable connection, allowing for easy wireless music playback.

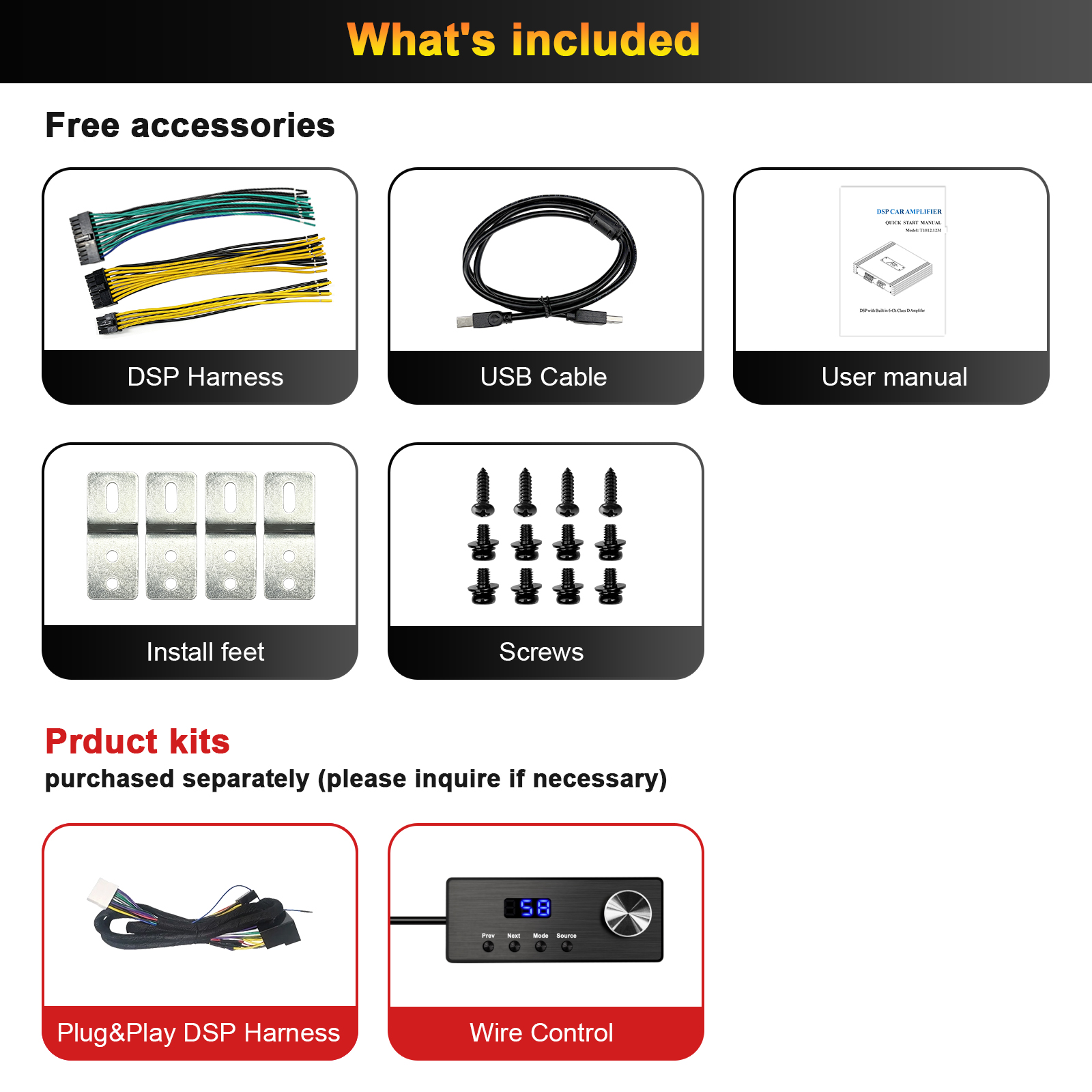

  5. Rich Accessories and Warranty: The package includes 1 DSP Amplifier, 3 Tail Wires, and 1 USB Cable. The external wiring controller is sold separately. Warranty is available in China with the original receipt.
Price: $ 594
Discount Price: $ 495

  • T1012.12M

  • AudioWinner

SKU:
Availability:
Quantity:

硬件配置接线&尺寸图软件图安装步骤及位置公司介绍生产流程公司介绍定制服务采购流程

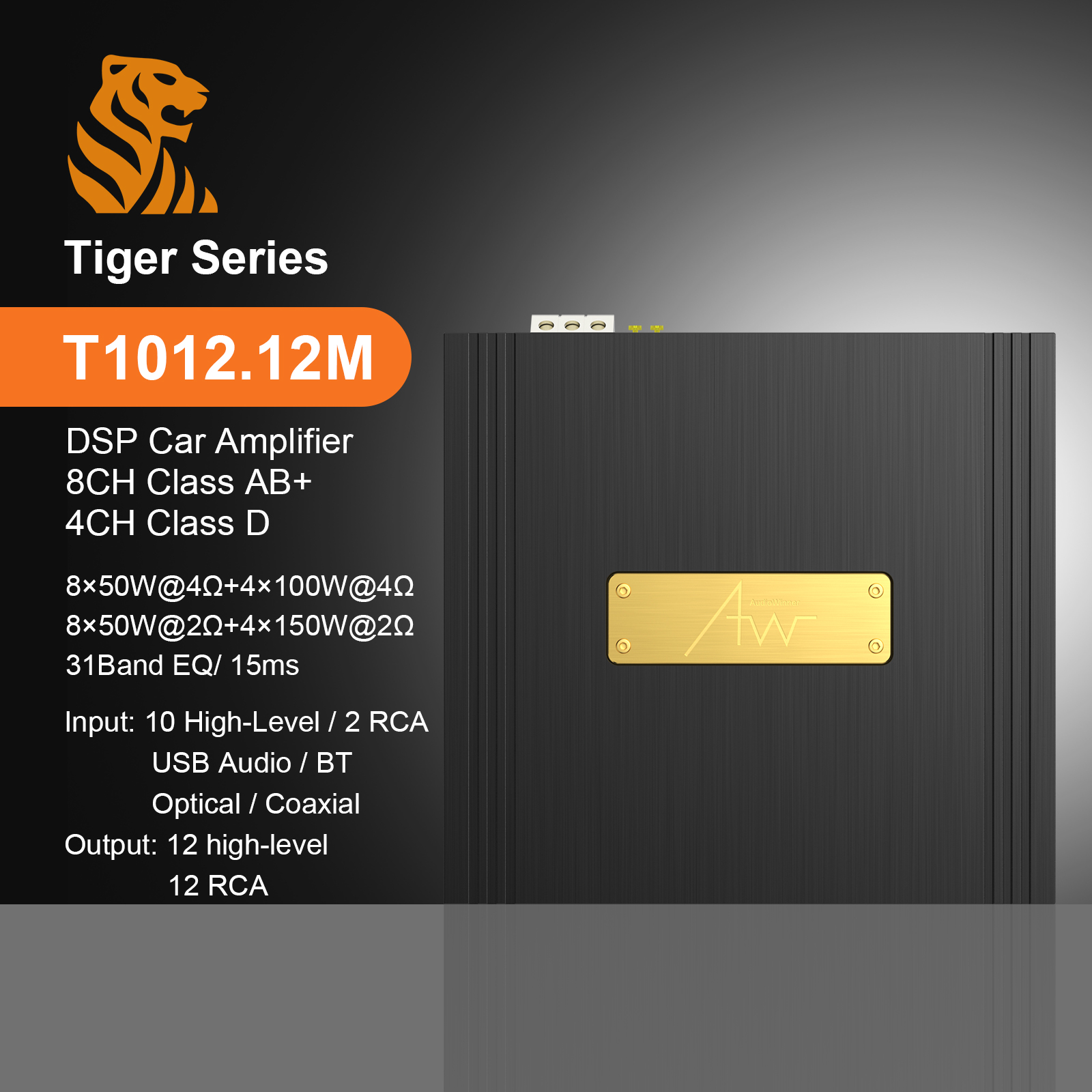

T1012.12M Hybrid Amplifier – The OEM System Terminator

✅ 10 High-Level + Optical/Coaxial/USB/BT：

· 4-18V input range for Mercedes/BMW factory systems.

✅ Hybrid AB/D Class Technology：

· 4×50W@4Ω (D Class for bass)

· 8×35W@4Ω (AB Class for mids/highs), 90dB SNR clarity.

✅ Dual-Core DSP + APTX HD：24Bit/192KHz wireless streaming with studio-grade precision.

✅ 31-Band EQ & 15ms Alignment：Pinpoint staging for driver-centric audio perfection.

✅ Military-Grade 35A Current：MIL-STD-810G certified for extreme environments.

✅ LED Command Center & 10 Presets：iOS/Android/PC control with live tuning sync.

Engineered For：Luxury car 3-way systems, overland builds, armored vehicle audio labs.

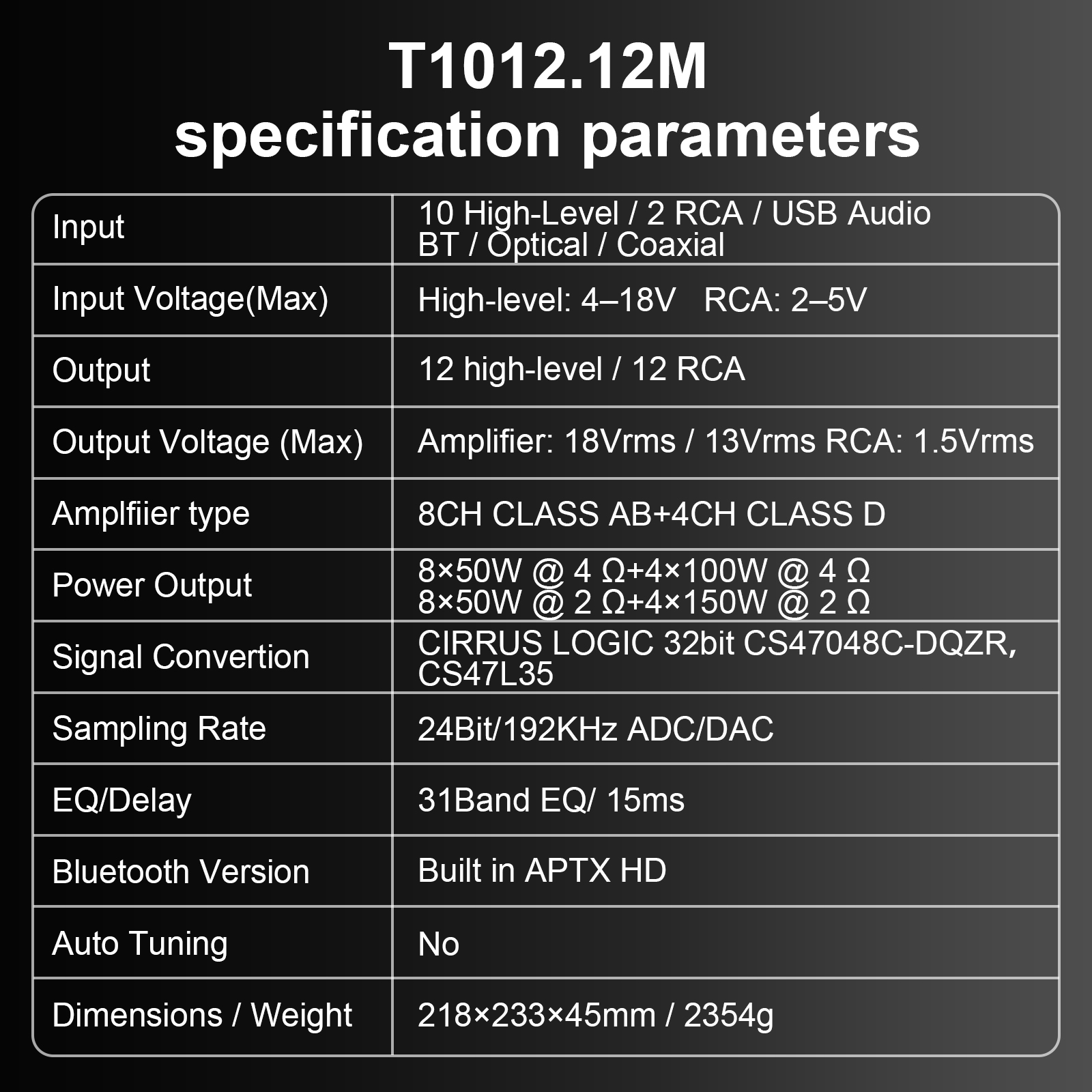

SpecificationT1012.12M

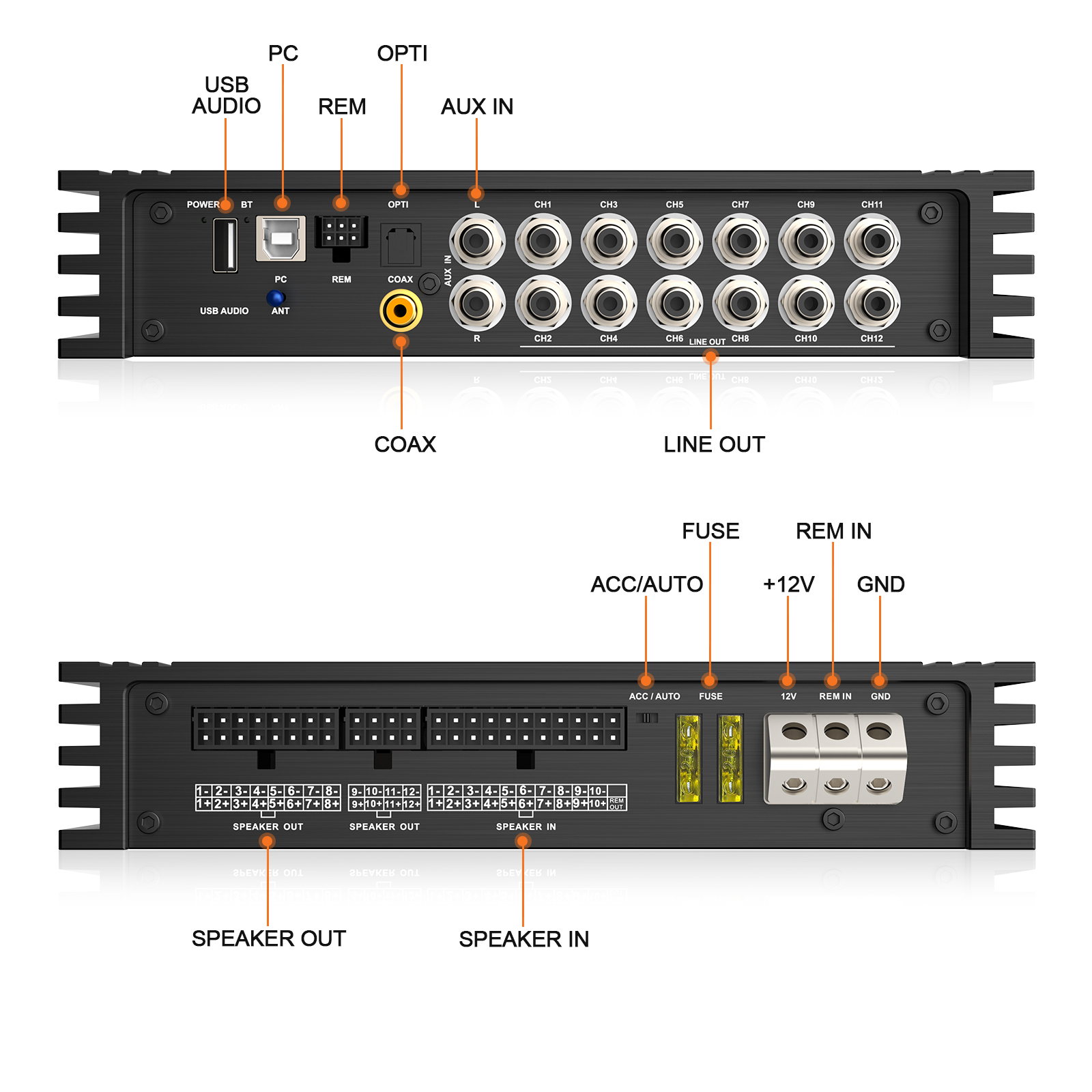

Input10   High Level/2 RCA/USB Audio/BT/Optical/Coaxial
Input Voltage(Max)High   Level-4-18Vrms, RCA - 2-5Vrms
Output12   High Level/10 RCA
Output Voltage (Max)Amplifier   output -18V/13Vrms, RCA-1.5Vrms
Output GainPower Amplifier :26 dB
Optical InYes
Coaxial InYes
Amplfiier typeClass   AB/D
Power Output4X50W   @ 4 Ω+8X35W @ 4 Ω
    4X70W @ 4 Ω+8x60W@ 2 Ω
(AD & DA) Signal ConvertionCIRRUS   LOGIC 32bit CS47048C-DQZR，
    CS47L35
Sampling Rate24Bit/192KHz   ADC/DAC
EQ/Delay31Band   EQ/ 15ms
Frequency Range20Hz-   20Khz
Q Value(Slope)0.5-9
EQ Gain-18.0dB +12.0dB
FilteringButter   , Bessel, Link
Filtering Crossover point20Hz-20Khz
Filter slope6dB/oct   -48dB/Oct
Phase0-180
Time Alignment (delay)15ms
Preset10
Frequency Respone20-20kHz
Signal to Noise - RCA85dB
Signal to Noise - Power Amp90dB
Input Resistance20kΩ
Low level output Resistance680Ω
Static Current1.2A
Operating Voltage9-16V
Working Current Range1.5-35A
Temperature resistanceYes
BluetoothYes
Bluetooth VersionBuilt   in APTX HD
USB Audio Built inYes
USB DISKNA
RemoteLED/圆屏线控
PC Connectionyes
PC Softwareyes
Android Appyes
IOS appYes
Auto TuningNA
REM Input3.5V
REM Output0.1A
Over heat protectionYes
Over Load ProtectionYes
Working IndicatorsYes
